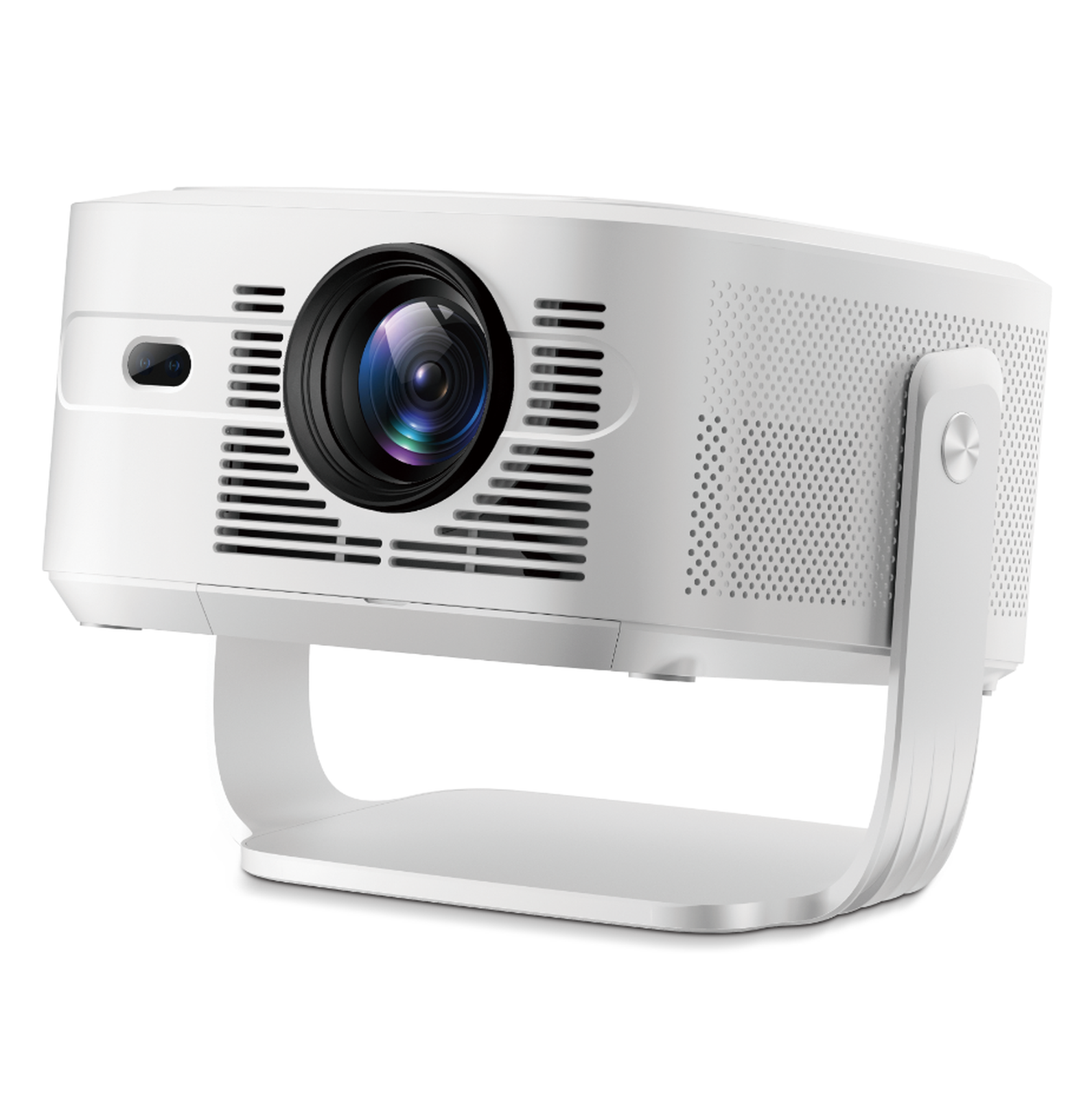

HY450 MAX

Smart Projector

Purpose-built for global distributors, commercial AV integrators, and hospitality brands seeking a high-brightness, large-format projection solution. Delivers 1100 ANSI lumens of true 1080P clarity with a 15W integrated speaker, engineered for impactful presentations and immersive entertainment in demanding commercial environments.

1100 ANSI Lumens Brightness

Industry-leading brightness in its class ensures vivid, crystal-clear projection even in ambient light. Designed for conference rooms, lobbies, and commercial spaces where light control is limited.

Up to 150" True 1080P

Native 1080P resolution projects a razor-sharp image up to 150 inches. The expansive display is ideal for boardroom presentations, training venues, and large-scale commercial installations.

Auto Focus & Keystone

Dual intelligent correction — auto focus locks in sharpness instantly, while auto trapezoidal keystone squares the geometry. Zero manual calibration required, enabling rapid deployment across multiple rooms.

Android 14 — Ready to Deploy

The latest Android 14 ecosystem with 2GB RAM and 16GB storage enables smooth multitasking and faster configuration. Ideal for operators requiring quick, large-scale rollout with enterprise-grade applications.

15W Speaker — Cinema Sound

A powerful 15W built-in speaker delivers room-filling, cinema-grade audio without external equipment. Bluetooth 5.4 voice remote and Bluetooth audio output complete a premium, self-contained AV experience out of the box.

Request a quote

Specifications
HY450 MAX Tech Specs
      CPUAllwinner H726, Quad-core ARM Cortex-A53
GPUArm Mali-G31, OpenGL ES3.2 / Vulkan 1.1
OSAndroid 14
RAM2GB DDR
Storage16GB eMMC
Wi-FiWi-Fi 6 (2.4G + 5G) Dual Band
BluetoothBT 5.4
Supported Resolution1080P (1920×1080)
Brightness1100 ANSI Lumens
Contrast Ratio2000:1
Aspect Ratio16:9
Throw Ratio1:1
Projection Size40" – 150"
Projection Distance0.9m – 3.25m
KeystoneAuto Trapezoidal Correction
FocusAuto Focus
Projection ModeFront / Rear
Lamp TypeWhite LED Module
Lamp Life30,000 Hours
Speaker1×15W Built-in
Bluetooth AudioSupported
Remote ControlBluetooth Voice Remote
Video Decoding8K@24fps: HEVC / VP9 / AVS2 / AVC
1080p@60fps: MPEG1 / MPEG2
Audio FormatMP3 / WMA
InterfaceUSB×1 / HDMI In×1 / AC×1
Optical Power100W
Power Consumption130W (Standby: 2.5W)
Working VoltageAC 110–240V / 50–60Hz
Dimensions247 × 241.5 × 193.5 mm
ColorWhite

CPU	Allwinner H726, Quad-core ARM Cortex-A53
GPU	Arm Mali-G31, OpenGL ES3.2 / Vulkan 1.1
OS	Android 14
RAM	2GB DDR
Storage	16GB eMMC
Wi-Fi	Wi-Fi 6 (2.4G + 5G) Dual Band
Bluetooth	BT 5.4
Supported Resolution	1080P (1920×1080)
Brightness	1100 ANSI Lumens
Contrast Ratio	2000:1
Aspect Ratio	16:9
Throw Ratio	1:1
Projection Size	40" – 150"
Projection Distance	0.9m – 3.25m
Keystone	Auto Trapezoidal Correction
Focus	Auto Focus
Projection Mode	Front / Rear
Lamp Type	White LED Module
Lamp Life	30,000 Hours
Speaker	1×15W Built-in
Bluetooth Audio	Supported
Remote Control	Bluetooth Voice Remote
Video Decoding	8K@24fps: HEVC / VP9 / AVS2 / AVC 1080p@60fps: MPEG1 / MPEG2
Audio Format	MP3 / WMA
Interface	USB×1 / HDMI In×1 / AC×1
Optical Power	100W
Power Consumption	130W (Standby: 2.5W)
Working Voltage	AC 110–240V / 50–60Hz
Dimensions	247 × 241.5 × 193.5 mm
Color	White

HY450 MAX Smart Projector

Professional-Grade Brightness, Boundless Possibilities

Built for those who demand more — 1100 ANSI lumens of dazzling brightness, native 1080P resolution, and a feature set engineered to outperform in any setting.

Auto Focus & Auto Keystone Correction

Say goodbye to manual adjustments. Intelligent auto focus locks onto a razor-sharp image in seconds, while automatic trapezoidal correction squares the picture perfectly — even at extreme angles.

150'' Ultra-Large Projection Display

Go bigger than ever with a massive 150-inch projection surface. From home theaters to conference rooms, fill the entire wall with sharp, vibrant visuals that captivate any audience.

Cinematic Audio, Built Right In

A powerful 15W speaker delivers room-filling sound without external accessories. Paired with Bluetooth 5.4 audio output, it doubles as a standalone wireless speaker for music streaming.

Bluetooth Voice Remote Control

Navigate, search, and command with your voice. The included Bluetooth remote makes content discovery effortless — just speak and the projector responds.
